Local testing in Katalon Studio

Last updated: June 2026

This document shows you how to perform local testing with Test Execution - Cloud Tunnel in Katalon Studio.

If your application under test is locally hosted in a private network, you can set up a tunnel for Test Execution - Cloud server to access the application.

1. Configure Katalon Tunnel from Admin settings. See Configure Katalon Tunnel.
2. Run tests with the Private/Local Testing option enabled in Katalon Studio.

Run tests with Test Execution - Cloud Tunnel in Katalon Studio

Requirements

• Test Execution - Cloud integration is enabled in Katalon Studio (KS), see: Enable Test Execution - Cloud integration in Katalon Studio.
• Test Execution - Cloud Tunnel Server hostnames are whitelisted. See: Common network issues and solutions.
• To allow User Datagram Protocol (UDP) connections, the proxy must be configured.
• If you use a Man-in-the-Middle (MITM) proxy, it must be configured to allow Transport Layer Security (TLS) connections.

In Katalon Studio, you can use the Tunnel Setup Helper to download and configure Test Execution - Cloud Tunnel.

1. In Katalon Studio, select the dropdown Run menu and choose to run with Cloud Execution.

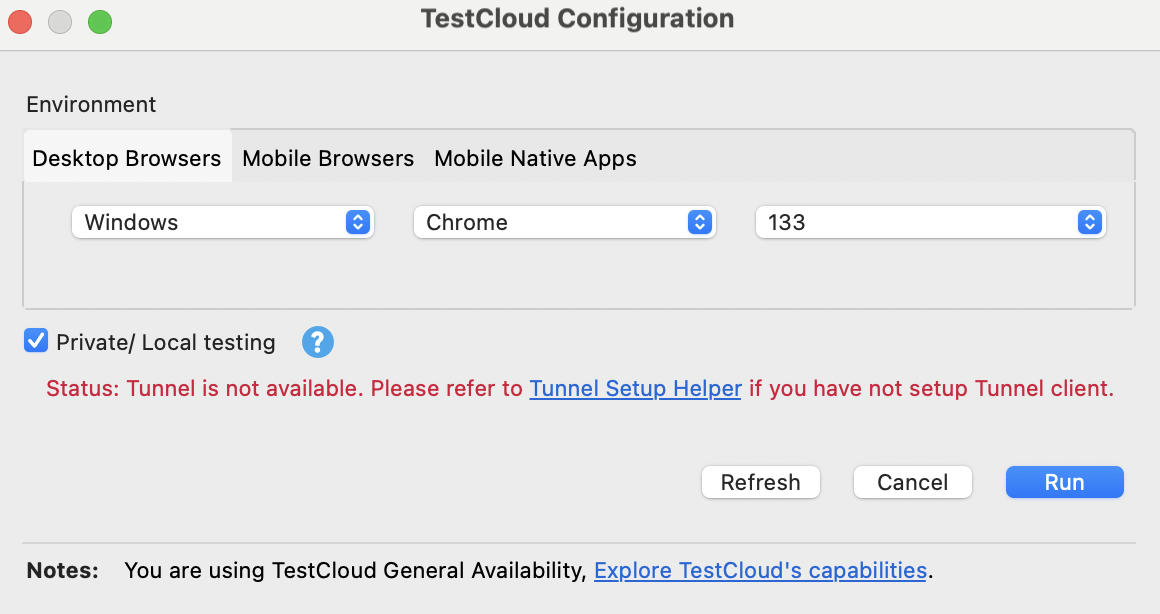

2. In the Test Execution - Cloud Configuration dialog, select your testing environment, then enable the Private/Local Testing option.

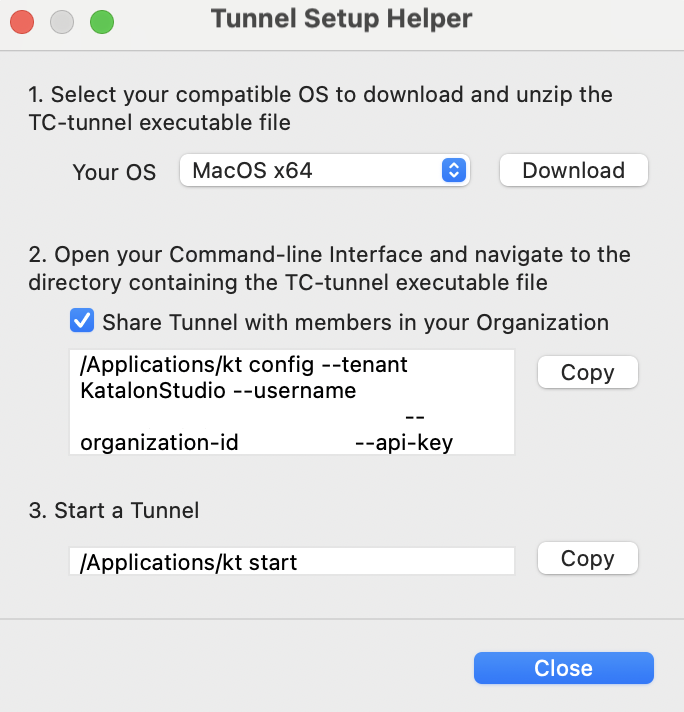

3. Click the Tunnel Setup Helper link. The Tunnel Setup Helper dialog appears.



4. Follow the step-by-step instructions in the dialog:

   1. Select your OS and download the .zip file, then unzip it.

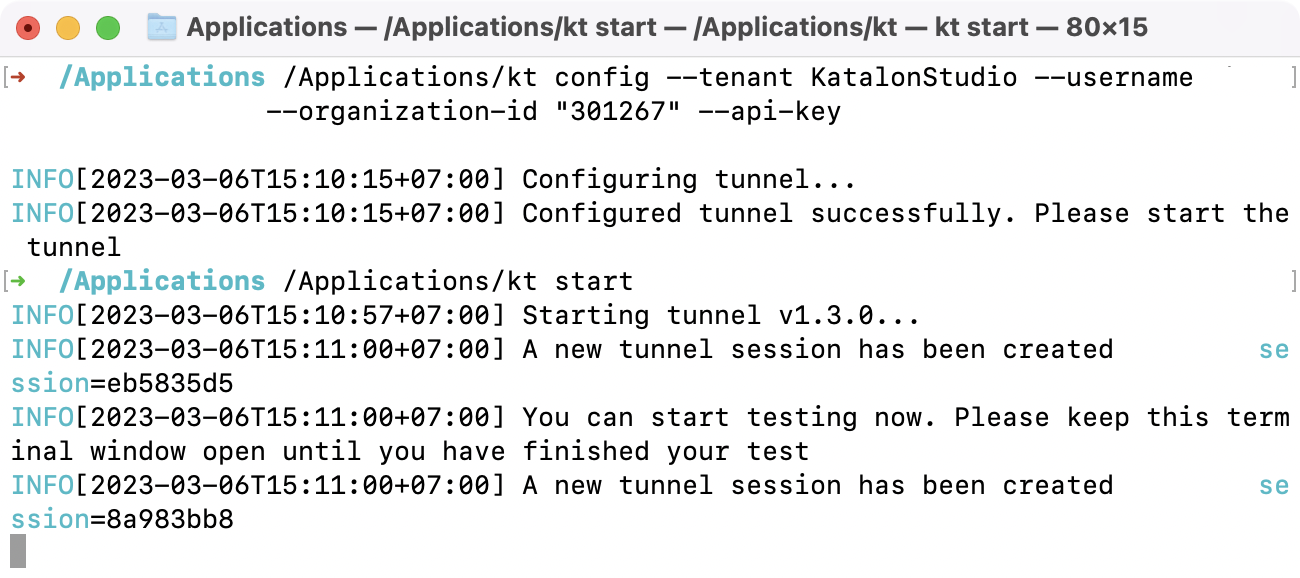

   2. Open the command-line interface (CLI) and navigate to the directory containing the tunnel executable. Copy the command from the dialog and run it.

      Example command:

      /Applications/kt config --tenant KatalonStudio --username "myusername@katalon.com" --organization-id "myid" --api-key "myapikey"

      note

      For users outside the US region (e.g., EU): after this step, update the server URL in the tunnelconfig file before continuing.

   3. Run kt start to start the tunnel.

      Note: Keep your CLI open until you have finished running tests.



5. Switch back to Tunnel Setup Helper and click Close.

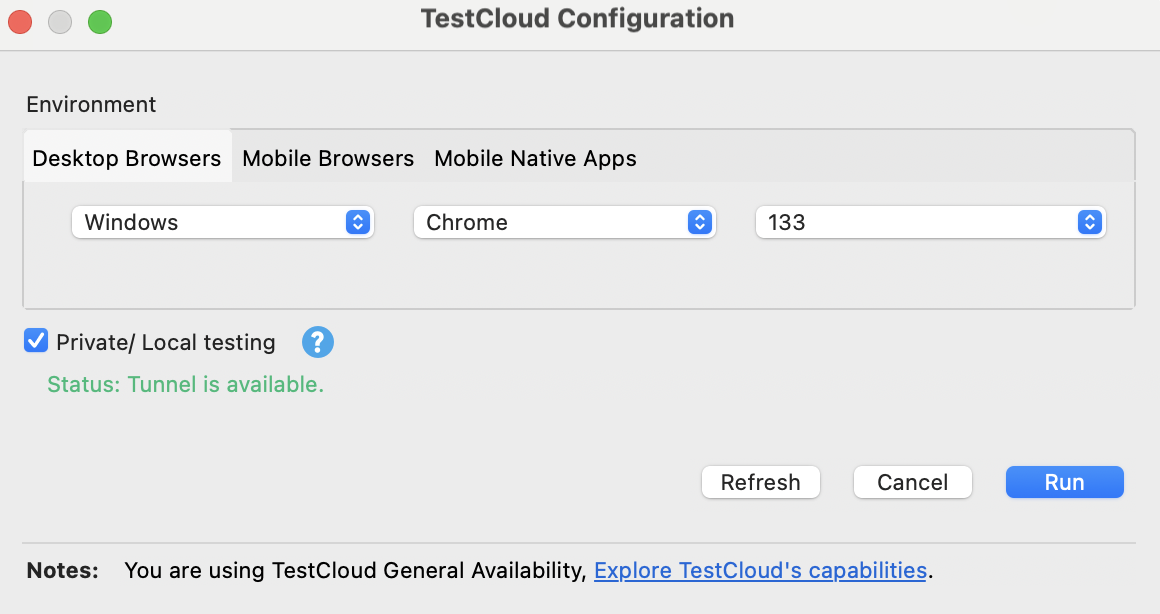

   Click Refresh and you should see the message: "Tunnel is available".



6. Select Run to start executing your test suite or test suite collection with Test Execution - Cloud Tunnel.
