Set up Desired Capabilities for WebUI Testing in Katalon Studio

Last updated: October 2026

You can define desired capabilities for local execution with Chrome, Firefox, Safari, and Edge Chromium in Project Settings.

This article shows you how to configure some common capabilities in WebUI testing and where they are saved.

info

You can find some common desired capabilities configurations in our GitHub sample project: Tips and tricks.

Chrome/Chrome (headless) desired capabilities

To set Chrome/Chrome (headless) desired capabilities, go to Project > Settings > Desired Capabilities > WebUI > Chrome/Chrome (headless). You can add, delete or clear (delete all) capabilities for Chrome/Chrome (headless) browser.

After clicking Add, provide Name, Type and Value of the property that you wish to configure.

note

• Desired capabilities is a JSON object (having keys and values pair). We need to set the capability Name as key and the capability Value as value.
• The capabilities keys are case-sensitive.
• If the property requires an integer value, be sure to add the value without decimal. E.g. profile.default_content_setting_values.notifications takes values 0, 1, and 2 - assigning 1.0 would not work.

Alternatively, go to <your test project location>\settings\internal, open the settings files for Chrome/Chrome (headless), and edit the capabilities in the Groovy script.

Driver	Settings file
Chrome	com.kms.katalon.core.webui.chrome.properties
Chrome (Headless)	com.kms.katalon.core.webui.chrome (headless).properties

To see all ChromeDriver supported capabilities, you can refer to the ChromeDriver document here: Capabilities & ChromeOptions.

Common use cases

Below are some common use cases of the desired capabilities for Chrome:

Use case 1: To start Chrome maximized by default. Click Add on the command toolbar, then type in the following value.

Name	Type	Value
args	List	--start-maximized

Alternatively, add the following script into the settings file for Chrome/Chrome (headless) in <your test project location>\settings\internal\.

{
  "CHROME_DRIVER": {
    "args": [
      "--start-maximized"
    ]
  }
}

---

Use case 2: To start Chrome in incognito (private) mode. Click Add on the command toolbar, then type in the following value.

Name	Type	Value
args	List	--incognito

Alternatively, add the following script into the settings file for Chrome/Chrome (headless) in <your test project location>\settings\internal\.

{
  "CHROME_DRIVER": {
    "args": [
      "--incognito"
    ]
  }
}

---

Use case 3: Configure Chrome to automatically download files to a specific directory.

Name	Type	Value
prefs	Dictionary	Click More (...). In the pop-up Dictionary Property Builder dialog, input values from Table 2.

Name	Type	Value
download.default_directory	String	C:\Downloads
download.prompt_for_download	Boolean	false
download.directory_upgrade	Boolean	true

Alternatively, add the following script into the settings file for Chrome/Chrome (headless) in <your test project location>\settings\internal\.

{
  "CHROME_DRIVER": {
      "prefs": {
        "download.default_directory": "C:\\Downloads",
        "download.prompt_for_download": false,
        "download.directory_upgrade": true
      }
    }
}

---

Use case 4: Hide Chrome is being controlled by automated test software message

When running automated web tests using Katalon Studio with Chrome, users may notice the Chrome is being controlled by automated test software message displayed at the top of the browser. It's harmless, but distracting and doesn't look good on client-facing demos.

You can add the following argument in Desired Capabilities > Web UI > Chrome to hide it (the hiding is visual only, Chrome will still be running in automation mode):

Name	Type	Value
excludeSwitches	List	[enable-automation]

This prevents ChromeDriver from applying the automation flag that triggers the banner.

---

Use case 5: Bypass the Local Network Access popup in Chrome

When running tests on Web applications that access local network resources, Chrome may display a Local Network Access permission popup, which can block execution and cause test failures.

warning

Disabling web security should be used only in test environments. It is not recommended for production-like security testing, as it relaxes Chrome’s built-in security restrictions.

You can bypass this popup by adding the following value in Chrome Desired Capabilities:

Name	Type	Value
args	List	--disable-web-security

This argument disables Chrome’s web security checks, allowing access to local network resources without triggering the popup during automated execution.

Alternatively, add the following script into the settings file for Chrome/Chrome (headless) in <your test project location>\settings\internal\.

{
  "CHROME_DRIVER": {
    "args": [
      "--disable-web-security"
    ]
  }
}

Firefox/Firefox (headless) desired capabilities

To get access to some useful capabilities for Firefox, follow these steps:

1. Open Firefox browser
2. In the address bar, type about:config
3. Search for the browser key

---

To define Firefox desired capabilities in Katalon Studio, follow these steps:

1. Go to Project > Settings > Desired Capabilities > WebUI > Firefox/Firefox (headless).
2. Click Add to create a key called moz:firefoxOptions.
3. Add your capabilities inside the moz:firefoxOptions key.

To learn more about the use of the moz:firefoxOptions key, you can refer to the Mozilla developer document here: firefoxOptions.

Alternatively, go to <your test project location>\settings\internal, open the settings files for Firefox/Firefox (headless), and edit the capabilities in Groovy.

Driver	Settings file
Firefox	com.kms.katalon.core.webui.firefox.properties
Firefox (Headless)	com.kms.katalon.core.webui.firefox (headless).properties

Common use cases

Belows are some common use cases of the desired capabilities for Firefox:

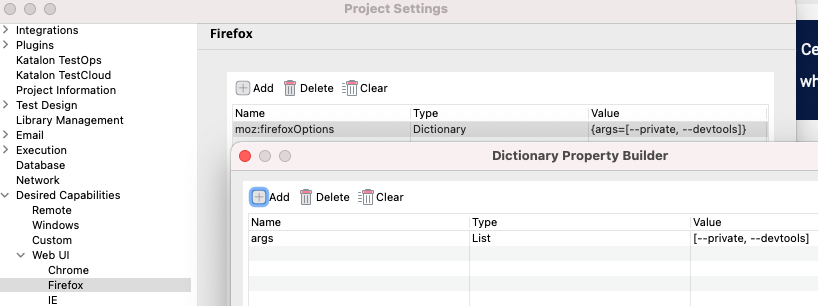

Use case 1: Start Firefox with devtools in private mode. To do so, click Add on the command toolbar, then input the following values:

Name	Type	Value
moz:firefoxOptions	Dictionary	Click More (...). In the pop-up Dictionary Property Builder dialog, input values from Table 2.

Name	Type	Value
args	List	--devtools,--private

Alternatively, go to <your test project location>\settings\internal, open the settings files for Firefox/Firefox (headless), and edit the capabilities in Groovy.

{
  "FIREFOX_DRIVER": {
    "moz:firefoxOptions": {
      "args": [
        "--private",
        "--devtools"
      ]
    }
  }
}

---

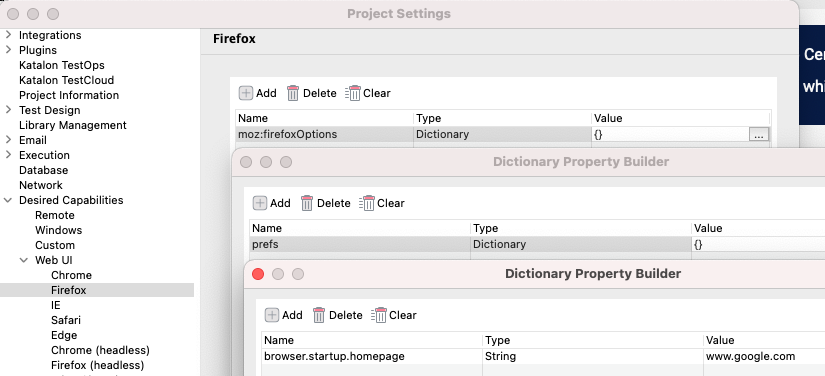

Use case 2: Start Firefox at a default page. To do so, click Add on the command toolbar, then input the following values:

Name	Type	Value
moz:firefoxOptions	Dictionary	Click More (...). In the pop-up Dictionary Property Builder dialog, input values from Table 2.

Name	Type	Value
prefs	Dictionary	Click More (...). In the pop-up Dictionary Property Builder dialog, input values from Table 3.

Name	Type	Value
browser.startup.homepage	String	www.google.com

Alternatively, go to <your test project location>\settings\internal, open the settings files for Firefox/Firefox (headless), and edit the capabilities in Groovy.

{
  "FIREFOX_DRIVER": {
    "moz:firefoxOptions": {
      "prefs": {
        "browser.startup.homepage": "https://www.google.com/"
      }
    }
  }
}

---

Use case 3: Download files to specified folders. Here, we want to download .html files to the C:\Downloads folder. To do so, click Add in the command toolbar, input the following values:

Name	Type	Value
moz:firefoxOptions	Dictionary	Click More (...). In the pop-up Dictionary Property Builder dialog, input values from Table 2.

Name	Type	Value
prefs	Dictionary	Click More (...). In the pop-up Dictionary Property Builder dialog, input values from Table 3.

Name	Type	Value
browser.download.folderList	Number	2.0
browser.helperApps.alwaysAsk.force	Boolean	False
browser.download.manager.showWhenStarting	Boolean	False
browser.download.dir	String	C:\Downloads
browser.download.dir	String	C:\Downloads
browser.download.defaultFolder	String	C:\Downloads
browser.helperApps.neverAsk.saveToDisk	String	text/html

Explanation of the settings:

• browser.download.folderList: Setting this preference as 2 tells Firefox to use the directory specified in browser.download.dir as the download folder instead. You can learn more about this preference in the MozillaZine document here: About:config entries.
• browser.download.manager.showWhenStarting: Setting this preference as False turns off the showing of download progress.
• browser.download.dir: This preference is to set path for the downloading folder, for example, C:\Downloads.
• browser.helperApps.neverAsk.saveToDisk: This preference tells Firefox to automatically download the files of the selected MIME types. The list of MIME types is comma-separated. To find the MIME types of the files you want to download, you can refer to the Mozilla developer document here: Check MIME types.

Alternatively, go to <your test project location>\settings\internal, open the settings files for Firefox/Firefox (headless), and edit the capabilities in Groovy.

{
  "FIREFOX_DRIVER": {
    "moz:firefoxOptions": {
      "prefs": {
        "browser.download.folderList": 2.0,
        "browser.helperApps.alwaysAsk.force": false,
        "browser.download.manager.showWhenStarting": false,
        "browser.download.dir": "C:\\Downloads",
        "browser.download.downloadDir": "C:\\Downloads",
        "browser.download.defaultFolder": "C:\\Downloads",
        "browser.helperApps.neverAsk.saveToDisk": "text/html"
      }
    }
  }
}

Edge Chromium desired capabilities

To set Edge Chromium desired capabilities, go to Project Settings > Desired Capabilities > WebUI > Edge Chromium.

Common use cases

Below are some common use cases of the desired capabilities for Edge Chromium:

Use case 1: Set Edge Chromium window size. To do so, click Add on the command toolbar, then input the following values:

Name	Type	Value
ms:edgeOptions	Dictionary	Click More (...). In the pop-up Dictionary Property Builder dialog, input values from Table 2.
ms:edgeChromium	Boolean	true

Name	Type	Value
args	List	Click More (...). In the pop-up List Property Builder dialog, input values from Table 3.

Type	Value
String	window-size=100,100

---

Use case 2: Set high-dpi-support and force-device-scale-factor desired capabilities. Click Add on the command toolbar, then input the following values:

Name	Type	Value
ms:edgeOptions	Dictionary	Click More (...). In the pop-up Dictionary Property Builder dialog, input values from Table 2.
ms:edgeChromium	Boolean	true

Name	Type	Value
args	List	Click More (...). In the pop-up List Property Builder dialog, input values from Table 3.

Type	Value
String	--start-maximized
String	force-device-scale-factor=0.75
String	high-dpi-support=0.75

---

Use case 3: Run Edge Chromium in headless mode. This setup is commonly used in CI/CD pipelines, Docker containers, or non-GUI environments.

Add the following values:

Name	Type	Value
ms:edgeOptions	Dictionary	Click More (...). In the pop-up Dictionary Property Builder dialog, input values from Table 2.

Name	Type	Value
args	List	Click More (...). In the pop-up List Property Builder dialog, input values from Table 3.

Type	Value
String	disable-gpu
String	headless

Your final structure should look like this:

• ms:edgeOptions
  • args
    • disable-gpu
    • headless

Apply and run a test case using Edge Chromium. Edge Chromium will now run in headless mode.

Location of desired capabilities files

You can find the settings files for each environment in the <your test project location>\settings\internal folder.

The files for each driver are named as follows:

Driver	Settings file
Chrome	com.kms.katalon.core.webui.chrome.properties
Firefox	com.kms.katalon.core.webui.firefox.properties
Chrome (Headless)	com.kms.katalon.core.webui.chrome (headless).properties
Firefox (Headless)	com.kms.katalon.core.webui.firefox (headless).properties
Safari	com.kms.katalon.core.webui.safari.properties
Edge (Chromium)	com.kms.katalon.core.webui.edge chromium.properties

Advanced use cases

Zooming in browsers

When executing tests in a CI/CD environment, the website may be scaled beyond 100%, causing UI elements to appear misaligned. To perform zooming, you can set a fixed browser size, then use JavascriptExecutor to perform zooming:

1. Configure browser size in Desired Capabilities, for the browser env you want to execute in. This example sets window size to 1200x600:

Name	Type	Value
args	List	[--window-size=1200,600]

2. Add JavascriptExecutor script to your test case

This script below should be added after the WebUI.openBrowser('') step, and before the use of WebUI.navigateToUrl:

import org.openqa.selenium.WebDriver
import com.kms.katalon.core.webui.driver.DriverFactory
import org.openqa.selenium.JavascriptExecutor

WebDriver driver = DriverFactory.getWebDriver()

// If you run with Edge Chromium, change this to edge://settings/
driver.get("chrome://settings/")

WebUI.delay(3)

// Set zoom to [zoom_level_in_decimal]. E.g. 0.75 for zoom level 75%
((JavascriptExecutor) driver).executeScript(
 "chrome.settingsPrivate.setDefaultZoom([zoom_level_in_decimal]);"
)

For example, in the below test case, the Google Map site is accessed, then zoomed out to 75%:

Click to expand

import org.openqa.selenium.JavascriptExecutor
import org.openqa.selenium.WebDriver
import com.kms.katalon.core.webui.driver.DriverFactory
import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUI

WebUI.openBrowser('')

WebDriver driver = DriverFactory.getWebDriver()

// If you run with Edge Chromium, change this to edge://settings/
driver.get("chrome://settings/")

WebUI.delay(3)

// Set zoom to 75%, in decimal
((JavascriptExecutor) driver).executeScript(
 "chrome.settingsPrivate.setDefaultZoom(0.75);"
)

// Open Google Maps as an example
WebUI.navigateToUrl(
 'https://www.google.com/maps/@10.7789241,106.6880843,15z?entry=ttu'
)

Results:
