Smart Mobile Recorder

This document explains the Smart Mobile Recorder feature in Katalon Studio, how beneficial it is to your workflow, and how to use it.

note

• Starting Katalon Studio version 11.0.0, Smart Mobile Recorder is officially available as a feature.
• Interactive mode is currently available as a beta feature in Katalon Studio version 11.0.0. In the beta phase, it is for evaluation purposes only and not recommended for production use.

The Smart Mobile Recorder in Katalon Studio provides an upgraded experience for recording mobile app interactions. It allows you to capture user live actions, and generate test steps automatically.

Katalon Studio's Smart Mobile Recorder modernizes the existing Mobile Recorder experience while introducing a new Interactive Mode that enables live actions capturing directly from the live device preview. With Interactive Mode, you can review test steps and see the app UI all in one place, making test case creation more intuitive and reducing the manual back-and-forth between recording and debugging.

Key Benefits

• Enhanced usability with a modern UI — Supports dynamic resizing, and object outlining on hover.
• Supports interactive mode with real-time test step capturing, for both Android and iOS.
• Heartbeat mechanism prevents Appium session timeouts during long recordings.
• Pause and Resume capability to control recording flow.
• Auto refresh mechanism to auto-update the device view and object tree every 60 seconds, to capture the latest app state (new screens, updated elements, or layout changes) alongside manual reload option.
• Test step playback any time for troubleshooting during the session, with visual feedback and running log.

Enabling Smart Mobile Recorder

To switch to Smart Mobile Recorder:

1. Go to Preferences → Recorder.
2. Tick the Smart Mobile Recorder checkbox.
3. Click Apply and Close.

note

• Once enabled, launching Mobile Recorder opens the Smart Mobile Recorder UI instead of the usual Mobile Recorder.
• If you want to use Mobile Recorder, deselect Smart Mobile Recorder to opt-out, and opt back in any time.

Get started with Smart Mobile Recorder

Follow these steps:

1. Open Mobile Recorder from the main toolbar.

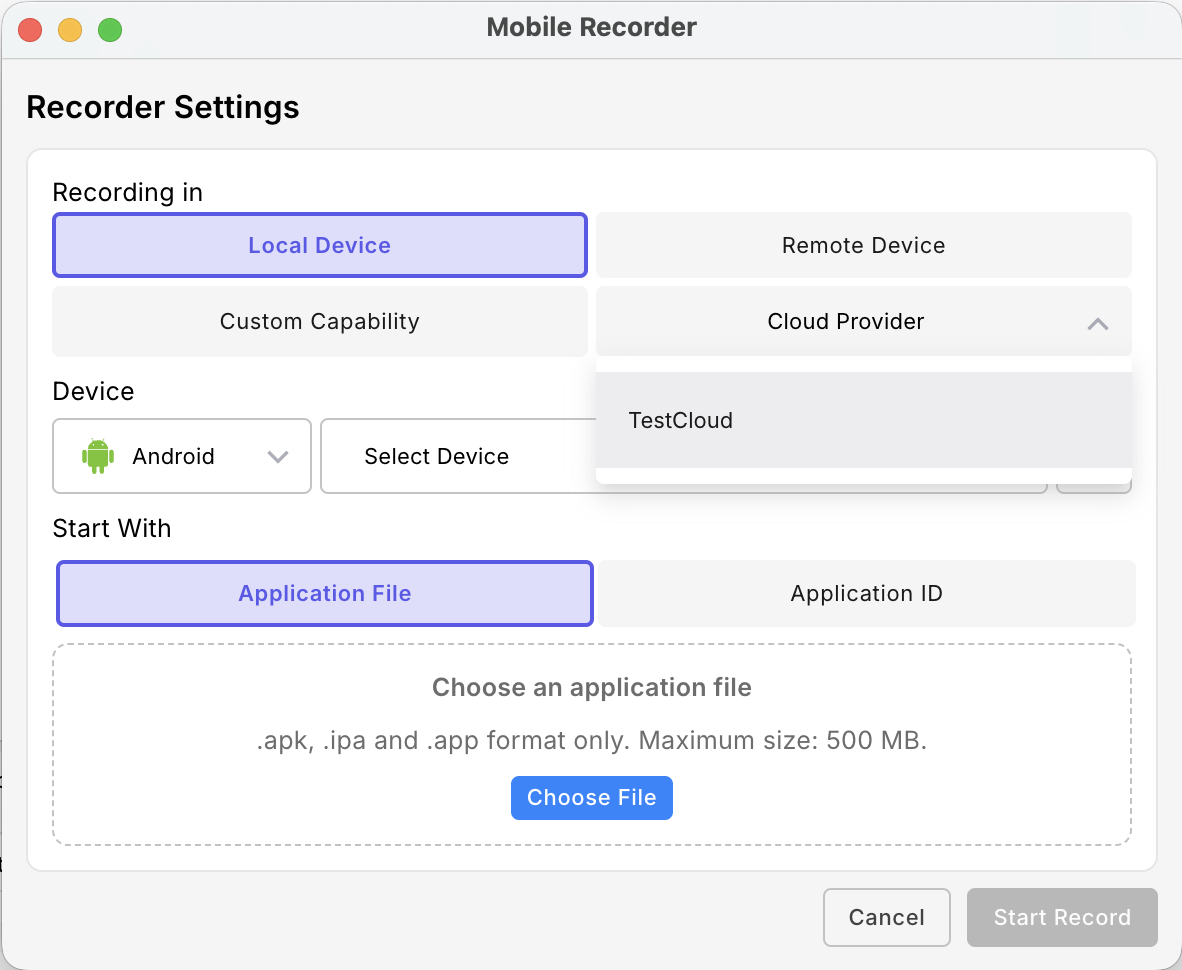

2. Select a record mode: Local Device, Remote Device, Custom Desired Capabilities, or Cloud Provider to select supported devices from TestCloud.

Requirements

• Local Device requires a configured mobile device connected to your machine. See instructions at Mobile Recorder - Device Type.
• Remote Device requires a pre-configured remote device. See instructions at Mobile app testing with Remote Devies
• Custom Desired Capabilities requires a pre-configured device in Desired Capabilities. See configuration details at Desired Capabilities in Mobile Testing
• Cloud Provider requires at least one integration with a cloud provider (view all possible intergration options at Cloud device integrations).

3. Pick your app source (upload an Application file or specify the Application ID). Application ID is the package name for Android apps, or the bundle identifier for iOS apps.

For TestCloud: you can select available apps that have been uploaded on your organization's domain (see more details at Upload a mobile app to TestOps)

4. Click Start Record.
5. By default, you enter Manual Mode - this mode functions like the legacy Mobile Recorder, with a modern, revamped UI. Turn on Interactive Mode to record actions directly from the live device view.
   • Your interactions will appear in the Recorded Steps panel in real time.
   • Each interaction automatically creates a new Test Object, or update existing one in the current recording session.
6. Throughout the session, you can:
   • Enable auto-refresh to update the device view every 60s.
   • Verify and highlight objects to verify objects via different locators.
   • Capture elements via screenshots, for image locator (see more details at Mobile object locator strategies - Image).
   • Add/Edit/Remove test steps.
   • Playback test steps selectively for troubleshooting, and see the app UI updates live with each step.
7. When done, click Save to save the test script including test steps, test objects and variables (if any).

Feature details

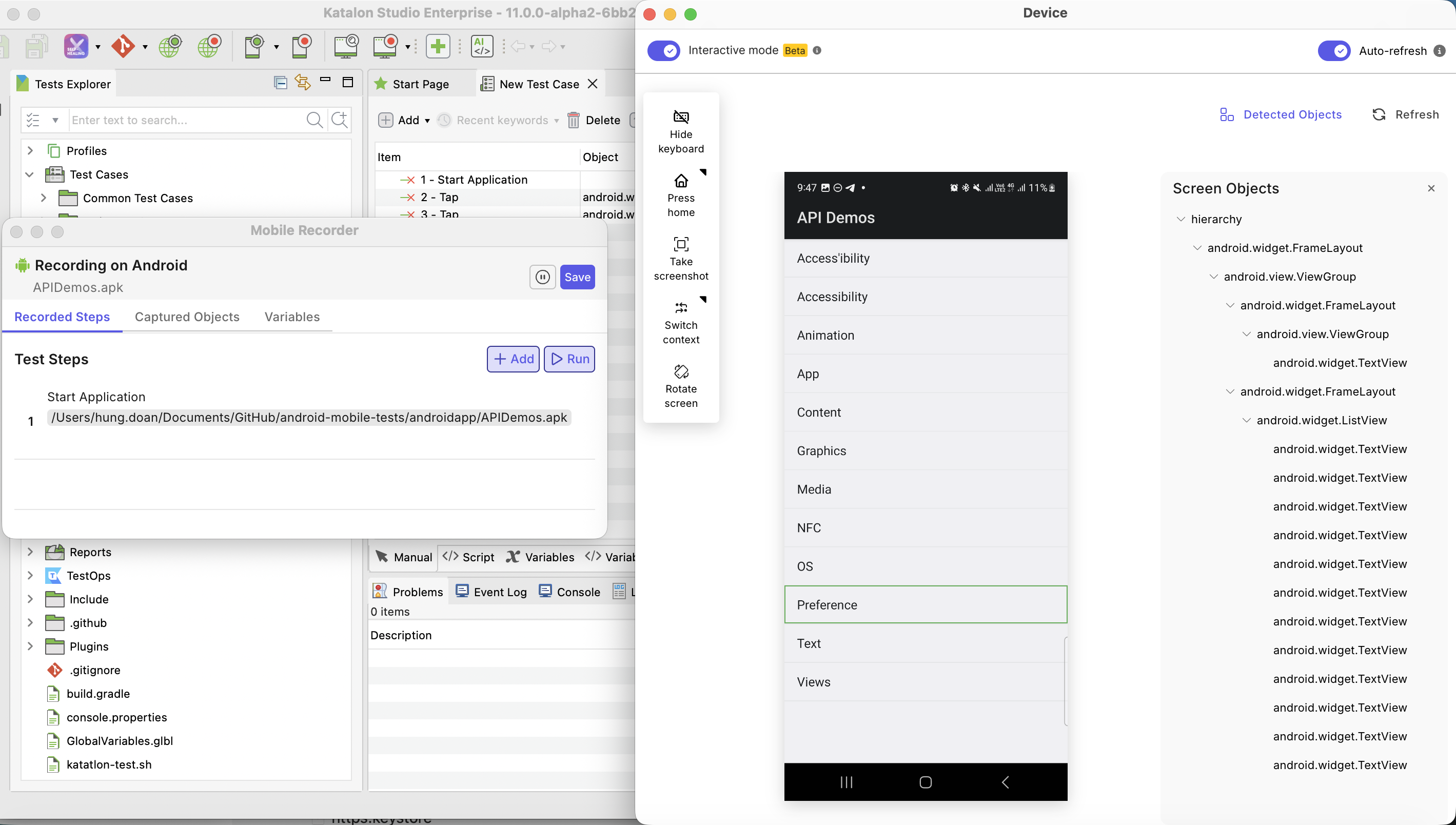

Interactive mode (beta)

Interactive Mode lets you capture actions directly on the live mobile preview. It’s fast and visual, ideal for exploratory testing phase.

Supported actions are:

Action	Keywords	How to perform
Tap	Mobile.tap()	Click any point on the Device View.
SetText	Mobile.Tap() and Mobile.sendKeys	Click a text box on the Device View, and input text from the testing device's keyboards.
Swipe	Mobile.swipe()	Swipe upwards/downwards on the Device View.
Swipe with Duration Support	Mobile.swipeWithDuration(), with a parameter for duration.	Swipe upwards/downwards on the Device View.
Double Tap	Mobile.doubleTap()	Click any point on the Device View.
Tap-and-hold	Mobile.tapAndHold()	Click and hold at any point on the Device View, until the recorder prompts "performing TAP AND HOLD Action".
Zoom In/Out	Mobile.pinchToZoomInAtPosition() and Mobile.pinchToZoomOutAtPosition() (with default/customizable offset)	1. Press and hold Alt (Windows) or Option (Mac) to enable the zoom widget. 2. The widget appears with an anchor in the middle. Drag the anchor to your desired location, and drag the outer dots inwards/outwards.

See below a demonstration of the supported actions:

Key behaviors

• Hovering over elements on the Device View or selecting elements in the Screen Objects highlights them.
• Your interactions with the Device View are instantly captured and listed in Recorded Steps. Test Objects are automatically generated.
• You don't need to switch to manual mode to stop recording interaction - Pause the session, interact with the Device View, then Resume the session to continue recording.

Global actions

Global actions are available on the left panel in both modes:

Action	Description
Hide Keyboard	Hides the on-screen keyboard if it is blocking elements.
Press	Provides quick-access buttons to perform Press Home, Press Back (Android only), or Press Key Code on the device.
Take Screenshot	Captures the current device screen. Screenshots can be used for future reference or for creating image-based locators (see more details at Mobile object locator strategies - Image).
Switch Context	Switch between Native, WebView, or other available contexts when testing hybrid apps.
Rotate Screen	Rotates the device orientation (portrait/landscape) and updates the device preview accordingly.
Scroll to Text	Scrolls to a specific text in the app (if found).

Device View vs Screen Objects panel

Smart Mobile Recorder provides two synchronized views of your application under test (AUT): the Device View and the Screen Objects panel.

The Device View shows a live snapshot of your mobile app exactly as it appears on the device. Use this view to:

• Interact with the AUT in interactive mode.
• Confirm that UI updates or transitions appear correctly.
• Validate that the displayed content is what the test step is interacting with.

You can click Detected Objects to view the Screen Objects panel. This panel displays the underlying view hierarchy of the current UI, showing every UI element and its parent–child relationships. Use this view to:

• Verify that an element exists in the expected place in the structure.
• Verify overlapping/repeated elements.
• Inspect parent containers and grouping logic.
• Determine whether multiple similar-looking elements are actually different nodes in the hierarchy.
• Understand how deeply nested components are built behind the scenes.

Both views work together to provide a full understanding of your app's UI, ensuring both visual and structural accuracy.

Heartbeat Mechanism

The heartbeat runs silently while Smart Mobile Recorder is active, sending periodic commands to keep the Appium session alive.

Benefits

• Prevents session timeouts during idle periods.
• Reduces session drops on cloud providers such as TestCloud and BrowserStack.
• Improves stability for long recordings or debugging sessions.

The heartbeat stops automatically when you close the recorder.

Refresh Mechanism

You can manually refresh with the Refresh button, to update the latest device view and object tree. This is helpful when:

• The device UI changes but does not automatically appear in the preview.
• You want to confirm the current state of the AUT before performing new actions.

Optionally, you can turn on Auto-refresh to automatically update the device view every 60 seconds. Auto-refresh only fetches the UI preview, without performing any actions on the device.

Manage Test Steps, Objects, and Variables while you record

While you record, you can switch between Recorded Steps, Captured Objects, and Variables panels.

Recorded Steps panel

All recorded steps automatically appear in the Recorded Steps panel. In this panel, you can:

• Edit, remove, or arrange recorded steps by dragging.
• Manually add new steps.
• Playback all steps or selectively.

During Playback, you can see the execution process live in the Device View, with execution details listed in the dedicated Running Logs panel.

Captured Objects panel

The Captured Objects panel lists all mobile UI elements detected during recording. In this panel, you can:

• Switch between locator types and Highlight & Verify objects on the device to confirm accuracy. This version of KS supports viewing the locators only - editing locators during recording will become available in later versions.
• Select a default locator with the Default button. Default locator will be marked with the bookmark icon.
• Generate an image locator by selecting Image and take a screenshot with the Take Screenshot button.

Variables panel

Manage temporary variables (such as credentials or config values) directly within your recording session.

You can:

• Add, edit, or delete variables during the session.
• Define attributes like type, default value, and description.
• Mask sensitive fields to hide passwords or tokens.
• Link variables to existing project data tables for data-driven testing.

Supported variable types:

• Basic types: string, number, boolean, null
• Global variables:
• Test Object (directory)
• Test data
• Test data value
• Property
• List
• Map

Known Issues

The initial version of Smart Mobile Recorder has the following limitations. These capabilities will be expanded in future releases:

• When saving, some variables have their type unexpectedly changed to “Method call” or trigger an “invalid test case” error.
• Number-type variables with very large values are converted to “infinity” and then show as null on save.
• If the default locator doesn’t match any element, using Image locator’s Take Screenshot throws an error.
• Saving a test case that includes a NULL-type variable (with default value NULL) throws a Java error about defaultValue being null and stops saving.
• NULL-type variables with null default values are silently dropped when saving the script.
• On iOS (UIKitCatalog), recorded tap steps on list items (XCUIElementTypeStaticText) show as recorded but no actual tap occurs on the simulator.
• In iOS (UIKitCatalog), Interactive mode taps sometimes hit the wrong element (e.g., tapping Slider section actually triggers ProgressView). This can also cause capturing the same object multiple times.
• In iOS (UIKitCatalog 2.13), the highlight rectangle is drawn in the wrong position when hovering/moving the cursor over test objects.
• Old Mobile Recorder shows outdated iOS device versions when using TestCloud devices.
• Using Verify and Highlight with a “Custom locator” throws an error indicating that custom locator isn’t supported.
• When starting with TestCloud, if the Appium-device connection is slow or times out, the Recorder dialog appears but the Device View never shows. No clear timeout error is presented.
• Recorder UI does not reflect in the 2nd monitor. Device dialog cannot display the action button.
• In Interactive mode, when an in-app dialog is shown, tapping outside it (which should dismiss the dialog) times out and no step is recorded—even though in emulator that tap would close the dialog.
• If a locator matches multiple elements, neither Interactive mode nor manual mode performs a click.
• Custom keywords added manually during a recording session will not be saved into the test case.
• In Interactive mode, function keys such as Shift, Tab, etc. get sent into the text field as actual input.
• [UI] When using Image locator → Take Screenshot → Highlight, an error appears (since Image locator isn’t supported yet), but the error message text overflows/overlaps the dialog bounds.
• [UI] The Device dialog appears too large with lots of unused white space by default.
• getElement keywords (getElementLeftPosition, getElementTopPosition, getElementWidth, getElementHeight) always attempted to locate elements using XPath, even when the Test Object was configured to use Attribute as the default locator.
• For “Tap and Hold” duration input, the dialog allows choosing complex types (Global Variable, Variable, etc.), but the recorder doesn’t support them, resulting in recorded steps always having zero duration.
